DISCONTINUED
Effective 08/01/2020, the LaChapell 500CS and 500DT are discontinued. We will continue to support both models throughout the full warranty period but are no longer accepting orders as of 08/01/2020.

500CS CHANNEL STRIP

500 Series Channel Strip with EQ and Compressor

A near unbeatable value for the professional recording studio, project studio, or a recording studio bedroom, the LaChapell 500CS is a complete 500 series channel strip. Featuring a pristine transformerless solid state preamp, high and low pass filters, full 3-band EQ and VCA compressor in one unit, the 500CS is essentially a 500 series preamp, 500 series EQ and 500 series compressor all in one unit.

Each “half” of the unit can function independently for maximum value and versatility. Track with the preamp, eq and compressor together, then switch to independent mode to use the eq and compressor as an outboard 500 series eq and 500 series compressor.

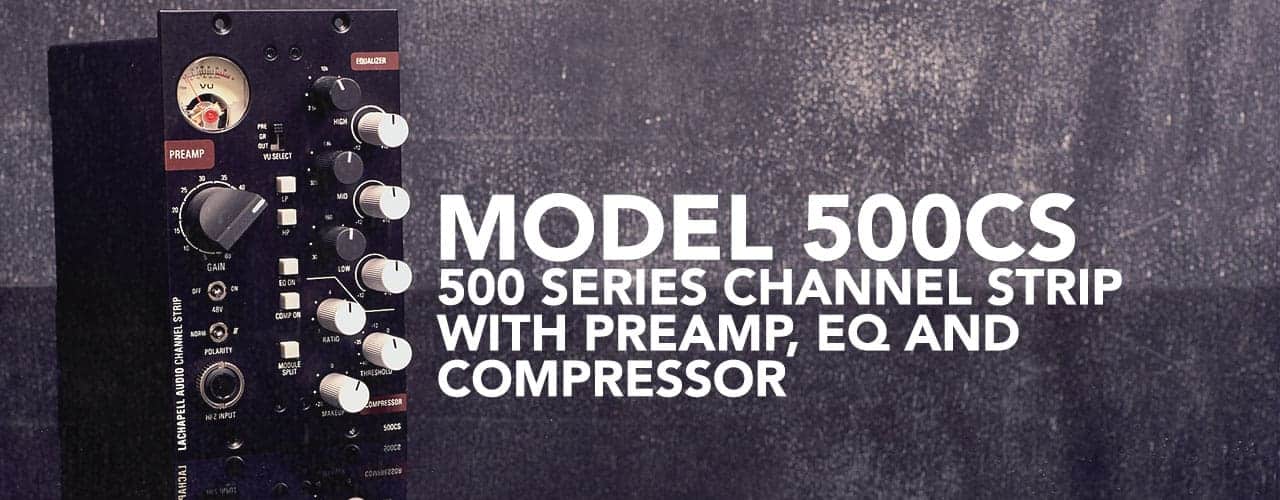

LaChapell 500CS - 500 Series Channel Strip Mic Pre With 500 Series EQ And 500 Series Compressor - Front View

500CS PRODUCT FEATURES

  • Lachapell audio 500 series modules icon

    COMPLETE 500 SERIES CHANNEL STRIP

    The LaChapell 500CS Channel Strip is a two bay 500 series preamp, 500 series EQ and 500 series compressor in one two bay unit

  • Lachapell Audio 3 band EQ icon

    MASTERING QUALITY EQ

    A three band EQ with additional High and Low Pass Filters give flexibility to your tracking and mixing. The transparent mastering grade EQ was designed to minimize phase interactions. It works in series with the preamp, or as a separate 500 series EQ.

  • lachapell audio hi-z input icon

    FRONT PANEL HI-Z

    The front panel Hi-Z input allows the 500CS to be used as an instrument preamplifier. When a 1/4″ jack is inserted into the Hi-Z input, the 500CS switches into instrument mode.

  • 500CS Compressor part of Channel Strip LaChapell Audio

    500 SERIES COMPRESSOR

    The two knob 500 series compressor (VCA style) on the LaChapell 500CS gives you ratio and threshold controls for flexible but forgiving compression. Select between fast or slow attack and release, and hard and soft knee settings with dip switches on back panel.

  • 500CS Channel Strip preamp with switchable EQ and compressor icon

    TWO IN ONE SPLIT MODULE OPERATION

    The 500CS Channel Strip works in series or independently. Use as a 500 series channel strip, or press the Module Split button to use the 500CS as a 500 series preamp in one bay and a 500 seres eq and 500 series compressor in the other bay. Each section can be bypassed also so that you can use just the EQ, or just the compressor.

  • lachapell audio VU meter icon

    MULTIFUNCTION VU

    An analog VU with function selector gives you great feedback as to what the 500CS is doing. The selector switch allows you to monitor the preamp output, the gain reduction of the 500 series compressor or the master output level.

500CS PRODUCT SPECIFICATIONS

500 SERIES PREAMP
   INTERNAL GAIN 60 dB
   THD+N 0.0009%
   Frequency Response 6 Hz – 45.5+ kHz
   Max Output 28.12 dBu
   Typical EIN -128
   Input Impedance 3 KΩ Mic / 20 KΩ Hi-Z
   Maximum Input Level 7 dBu
500 SERIES EQ
   Noise Floor < 94.5 dB – 20 hZ to 20 kHz
   THD+N 0.0015%
   Frequency Response 5 Hz – 36 kHz (+/- .28 dBu)
   Cut/Boost Range +/- 12dB
   Maximum Input Level 27.65 dBu
   Bands 3 Band
   High Pass Filter 6 dB per octave at 142 Hz
   Low Pass Filter 6 dB per octave at 7 kHz
500 SERIES COMPRESSOR
   Type VCA
   Knee Hard/Soft Selectable
   Slow Setting 5 ms Attack, 65 ms Release
   Fast Setting 3 ms Attack, 13 ms Release

500CS USER GUIDES AND DOWNLOADS
